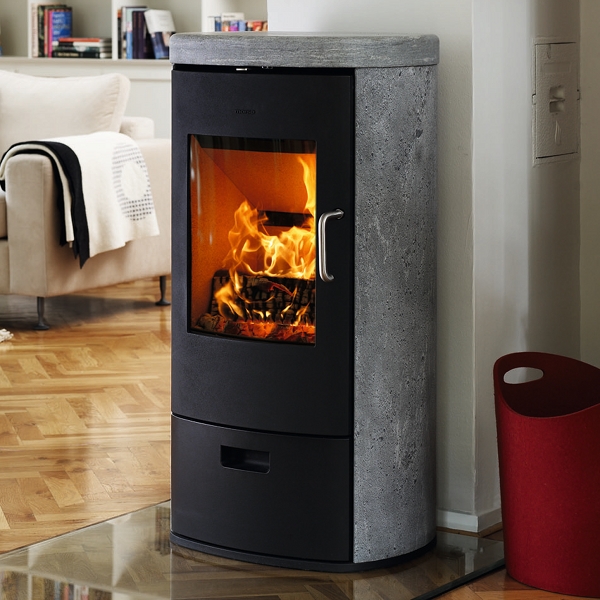

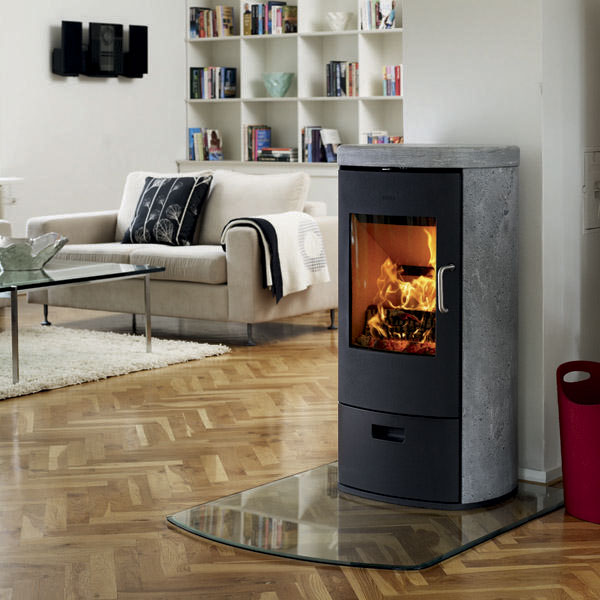

Mors 8150 - ANTALYA TURKEY OLESEN


Mors 8150

Mors 8150

Output
3-8 kw
Height 1042 mm
Width 530 mm
Depth 450 mm
Weight 247 kg
Log Lenght
35 cm






Technical details
• Convection System
• Airwash system
• Pre-heated combution air
• Pre-heated secondary air supply
• Tertiary Air
• Removable handle


Fuel
• Wood

Colors & Variants
• Black

Approvals
• EN/N
• DIN+/AT
• EPA





Technical details

Rated output (kw) 6,5

Heat output range (kw)

3-8

Heats up m2

45-120

Height

1042

Width

530

Depth

450

Flue exit  top - fits to

Ø 150

Flue exit rear - fits to

Ø 150

Weight (kg)

247

Fire box width (cm)

35

Clearances to combustible materials, behind stove (mm)

150

Clearances to combustible materials, to the side (mm)

500


The stove is fitted with outside air kit for rear installation.


CAD drawing



See drawing here

Stove Dimensions

See drawing here




http://international.morsoe.com/Files/Billeder/Morsoe/CAD/MODERNE%20OVNE/8150%20-%20opvarmer%20over%20110%20kvm/8100-220_Isometrisk_m%C3%A5lskitse_8150_skuffe__fedtsten_klippet.jpg
